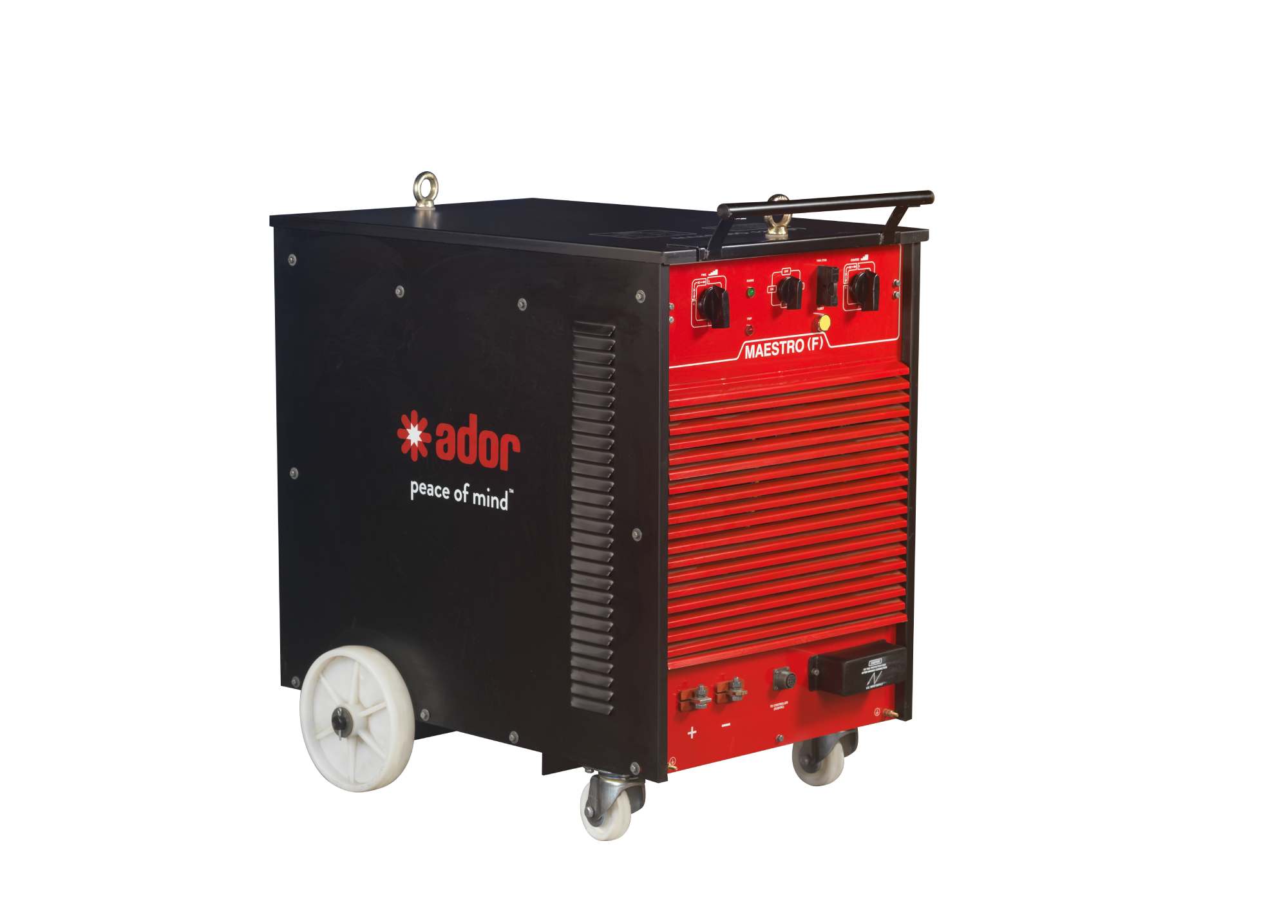

Maestro 800 (F) / 1000 (F) / 1200 (F)

Maestro 800 (F) / 1000 (F) / 1200 (F)

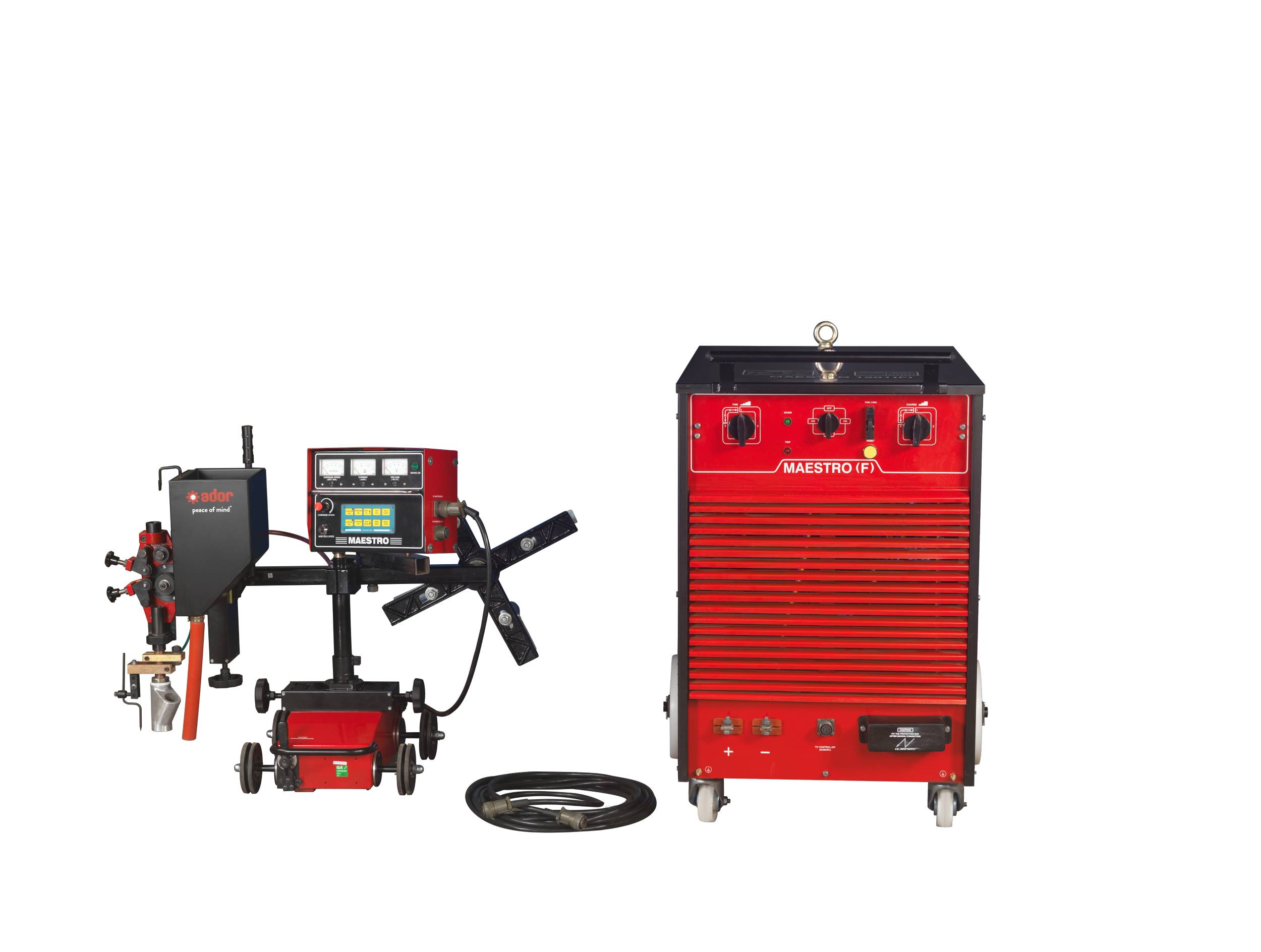

1200 AMP Diode base SAW Welding power source with welder friendly tractor trolley. Programmed sequential operations of power source, wire feed and carriage through built- in solid state circuitry.

Download PDF Enquire Now

  • Twin Wire Attachment : Twin Wire Attachment is available for the Tractor as well as boom mounted welding heads. The arrangement consists of one set of each of wire drive roll and nozzle for 2 and 2.5 mm size wire to feed two wires in tandem and increase the deposition rate substantially. These arrangements is ideal for applications like cladding of hard surfaces as well as for filing weld metal in extra large size preparation grooves. Twin 2.5 mm wires can deliver up to 20% higher deposition rates than a single 5 mm wire at the same welding current and arc voltage parameters.
  • Fillet Welding Attachment : To enhance the usability of SAW Outfits, a Fillet Welding attachment can be provided to increase shop-floor productivity.
  • Spot Light Projector : This facility is especially useful for welding operations inside cylindrical jobs where a light source is required to examine the seam
  • Choice of Boom mounted or Tractor mounted Welding head models offered with Diode or Thyristorized Power Source
  • Boom mounted head comes with a choice of manual, semi – motorized and fully motorized cross slides
  • Programmed sequential operations of Power Source, Wire feed and carriage through built- in solid state circuitry
  • Twin Wire Attachment is optionally available – which helps to achieve 20% to 30% increase in Productivity
