Panther Nm

Panther Nm

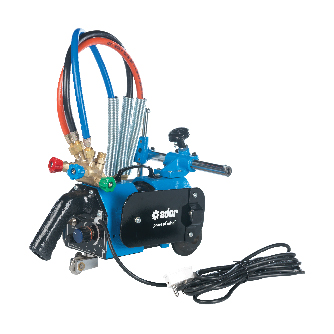

Panther NM is a portable gas cutting machine which uses Nozzles Mix technology for enhanced safety. It has an aluminium die cast body with ventilation holes which prevent over-heating and ensure smooth performance.

Download PDF Enquire Now

  • Cutting Capacity : 100 mm of mild steel with NMC-100S torch.
  • Straight Cut : In 1.8 mtr length or multiples by adding rails.
  • Circle Cutting : 150 to 1200 mm diameter.
  • Bevel Cutting : Up to 45 degrees.
  • Cutting Speed : 100 t0 1000 mm/min
  • Power Supply : 220/240 V, 1ph, 50 Hz.
  • Weight : 10.8 kg. approx.
  • Overall Dimension : 420 mm L x 280 mm W x 450mm H (approx).
  • Horizontal Adjustment of Torch : 80 mm.
  • Vertical Adjustment of Torch : 60 mm.

  • No backfire during cutting because of “Nozzle-Mix” technology.
  • Aluminium die cast body with ventilation holes reduces overheating of motor and other electrical parts.
  • Unbreakable, smooth and precise horizontal and vertical adjustment of torch.
  • Bevel setting with locking facility means bevel accuracy during long cutting.
  • Remote mounted gas control knobs make flame adjustment during cutting operation easy.
  • Single lever ON-OFF control for cutting Oxygen makes the stopping and restarting of cutting very easy and saves Oxygen.
  • Stainless steel heat reflectors (2 nos. with air gap), protect the motor from heat during cutting thus adding to the life of the machine.
  • Travels on standard 1.8 mtr extruded Aluminium rail.
