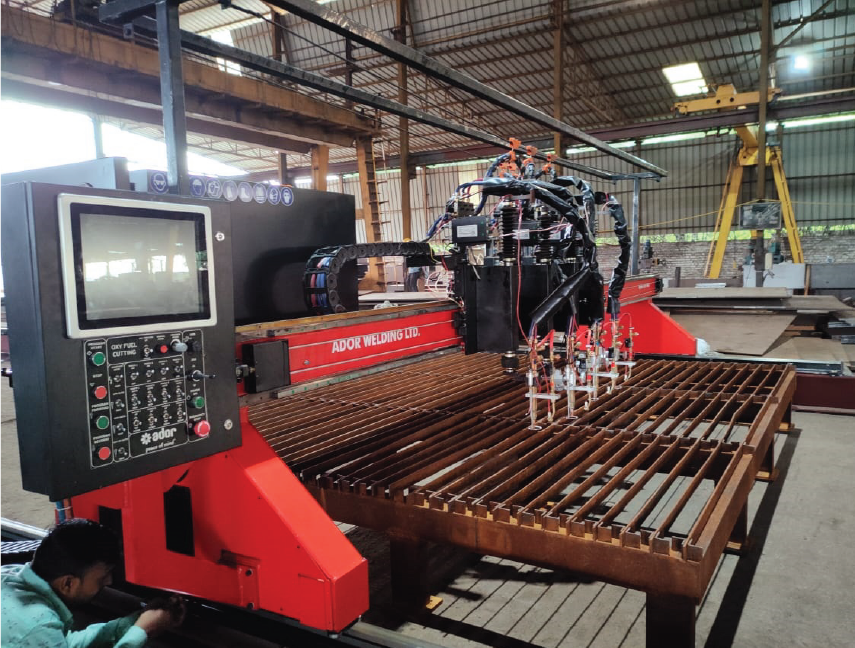

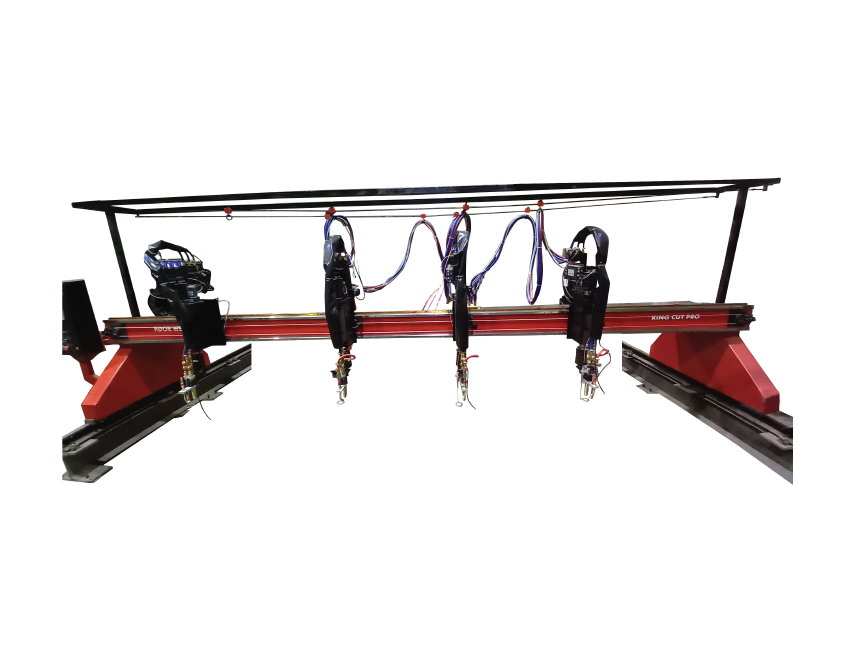

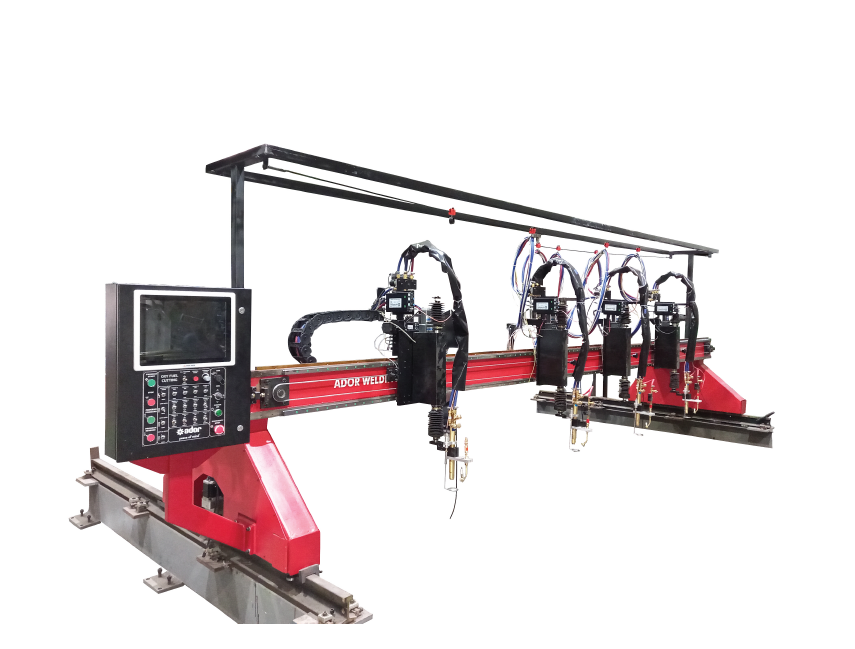

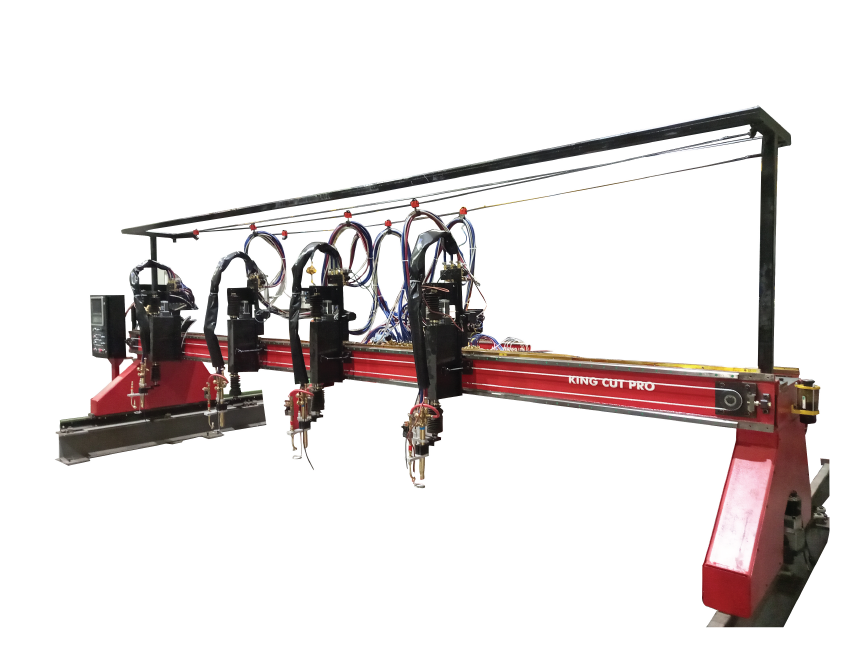

King Cut Pro-CNC Strip Cutting Machine

King Cut Pro-CNC Strip Cutting Machine

Profile Cutting by Oxy-Fuel / Plasma Cutting.

Effective Cutting Width (mm): 3000, 3500, 4000, 5000, 6000, 7000 as standard (higher width on request)

Effective Cutting Length (mm): 3000 to 12000 mm Standard or in the incremental of 2000 mm upto 30,000 mm.

  • Profile Cutting by Oxy-Fuel / Plasma Cutting

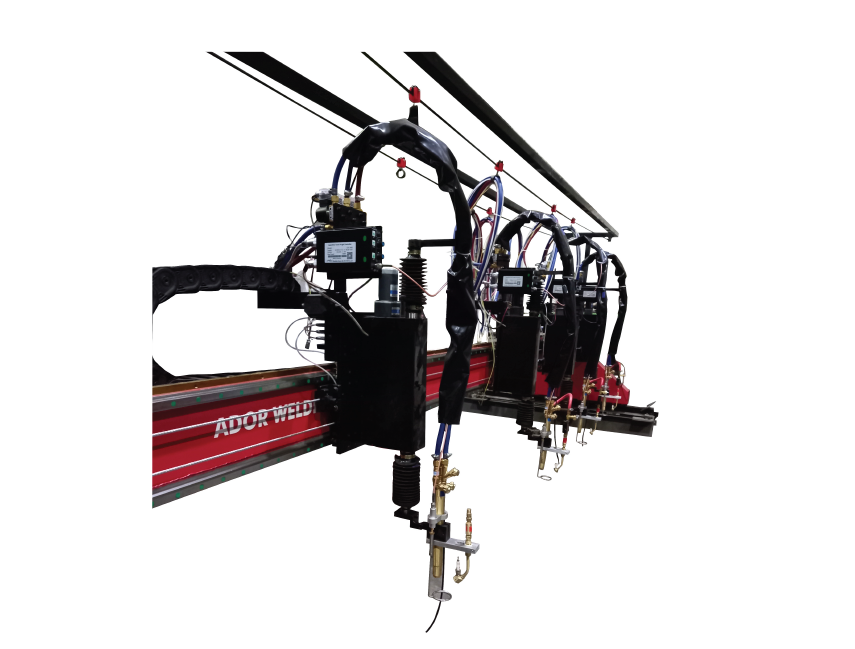

  • Rear or Front Mounted Strip Cutting torches with manual controls
  • All Axis Servo Drives

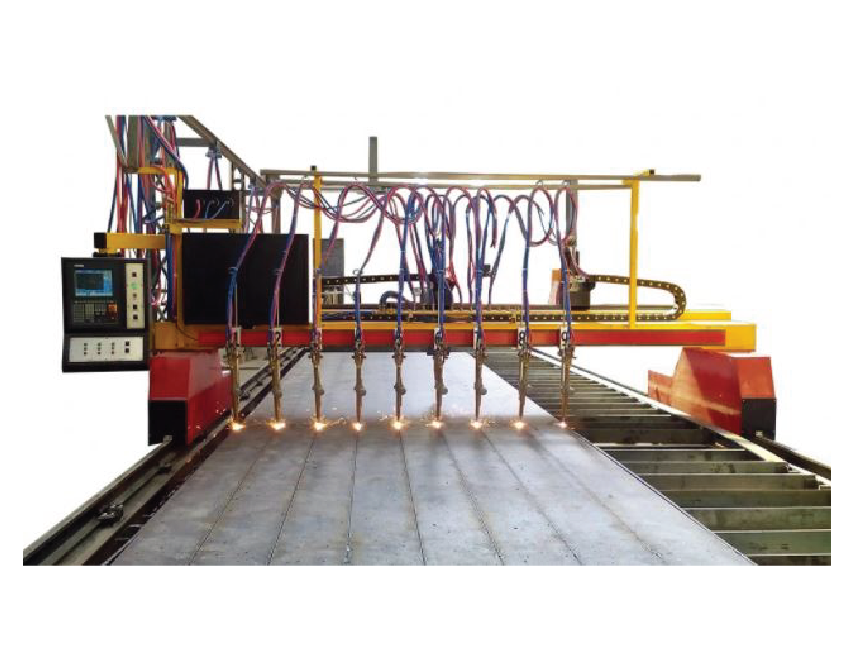

  • Upto 9 Oxy-Fuel Cutting Torches for Strip Cutting.
  • Equipped with efficient Nesting software for profile cutting.

-Excellent for Beam / Girder Fabrication for Rail Bridge/ Pre-Engineered Buildings​.​
