Champmulti 400/600
Champmulti 400/600
400 AMP Multi-process welding outfits with Inverter-based welding power source with CC/CV Characteristics. Electronic choke adjustment in GMAW process and Arc force adjustment in MMA process for better arc control / 600 AMP Multi-process welding outfits with Inverter-based welding power source with CC/CV Characteristics. Unique feature of Fresh Tip Transfer (FTT) to avoid globule formation.

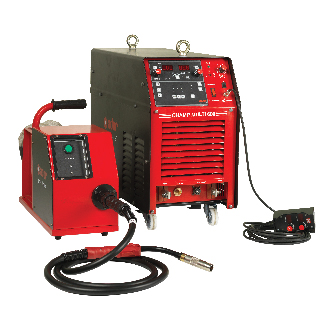

- CHAMP MULTI- 400 and CHAMP MULTI- 600 are Multi process welding outfits with Inverter based welding power source.
- The IGBT power module, High frequency transformer and fast recovery diode are used as key device for power conversion and transmission to assure better Efficiency and performance.
- The welding power source has both constant current (CC) and constant voltage characteristics (CV), which are suitable for MMA and MIG/MAG and FCAW applications.
- Set output parameters are constant against input supply variations.
- Power source is protected against single phasing, under voltage, over voltage, short circuit and temperature rise.
- Water cooled version available for CHAMP MULTI 600 as option.
- MMA process with this outfit is most suitable for all kinds of electrodes including CELWEL for fabrication work, pipe welding, site construction etc.
- GMAW process is suitable for welding in semiautomatic/ automatic mechanism for welding MS, SS and Al materials with Solid and Flux core wires (FCAW Mode).
- Both the models can operate with single point Synergic control in MIG/MAG mode.
- The complete system consists of Power Source, wire feeder, torch and inter connecting cables and control cables between wire feeder and power source.
- Available with both Gas cooled and Water cooled MIG Torches for 600 Amp model.
- High efficiency (>85%).
- Single point Synergic control in GMAW.
- User friendly Digital front panel and analog remote controller CHAMP MULTI- 400 and CHAMP MULTI- 600 are Multi process
- Auto “Weld Stop” when welding torch is taken away from work piece.
- 2T, 4T and SPOT and Multi Spot operating modes in MIG Mode as well as FCAW mode Dynamic Inductance adjustment in GMAW process and Arc force adjustment in MMA process for better arc control.
- Crater voltage and Crater current adjustment through digital panel.
- Unique feature of Pinch-off pulse to avoid globule formation.
