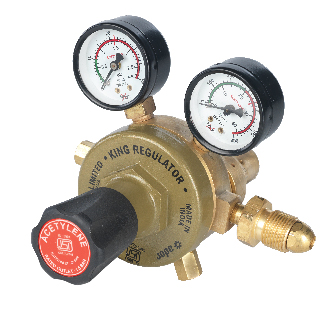

King Regulator Series (Two-Stage) Gas Regulators

King Regulator Series (Two-Stage) Gas Regulators

KING REGULATOR SERIES (TWO-STAGE) GAS REGULATORS has a forged brass bonnet in first stage and a die-cast special alloy bonnet in second stage for higher strength. Stainless steel diaphragm in first stage absorbs the shock of inlet pressure up to 230 bar and flexible profile rubber diaphragm in second stage offers fine gas control.

Download PDF Enquire Now

• Stainless steel diaphragm in first stage to absorb shock of inlet pressure up to 230 bar. Flexible rubber diaphragm in second stage for fine gas control.

• Forged brass bonnet in first stage and die cast special alloy bonnet in second stage for higher strength.

• Plastic moulded valve and stainless steel spindle in the valve assembly capsule in both stages for leak-proof performance.

• Distinctive colour for bonnet, pressure gauge and pressure adjusting knobs.

• Second stage plenum chamber volume is six times than first stage ensuring very stable flow characteristics.

• Double protection through separate safety valves in first and second stage.

• Triple filter: one in inlet and two wire mesh in the valve assembly protect the sensitive internal parts from any dust particles. Weight 2.40 Kg.
